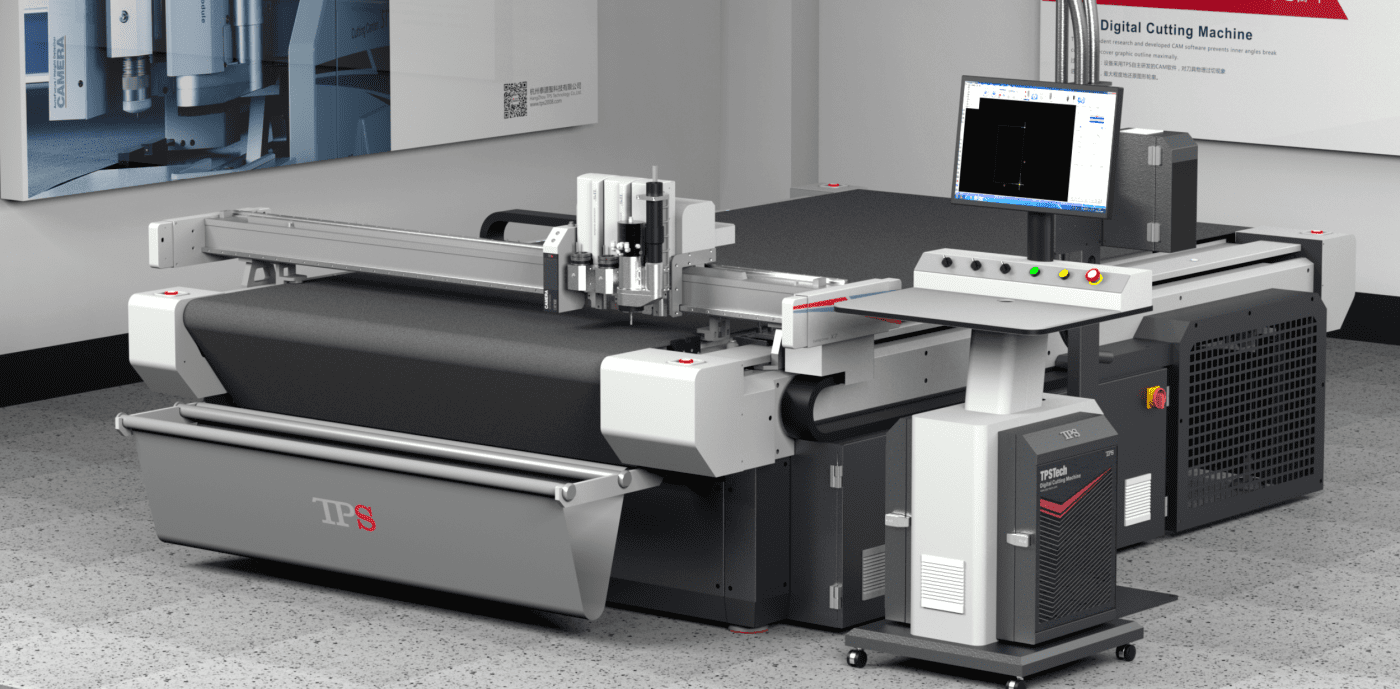

TPS X9 2516 digital cutting machine

TPS digital cutting machine X9/2516

Configurations & Features:

* Assembled frame of cutting table

* Working area: 1600*2500mm

* Vac-sorb Almagest alloy platform

* Double tool calibrating devices ( Fiber laser/ pressure sensitive cutting depth calibration

* 1.8 kw CNC router module with automatically tool changer, touching type tool calibration device, 60,000 rpm and vacuum cleaning system included

* Yaskawa brand servo motors and drivers

* High definition camera for detecting registration marks and QR code scan

* Safety anti-collision system

* 6 vacuum air zones

* Auto focus height detector combining with TPS software for tabletop mapping, cutting height compensation, material thickness auto-measuring and automatic edge-finding and positioning functions.

* G-code file support

* 3D engraving and cutting

* Over-cut preventing function

* RIP files support: caldera, onyx, Sai, etc.

* Nesting function built-in TPS software

* File management system

* Production cost estimation template
