versatile 4 you

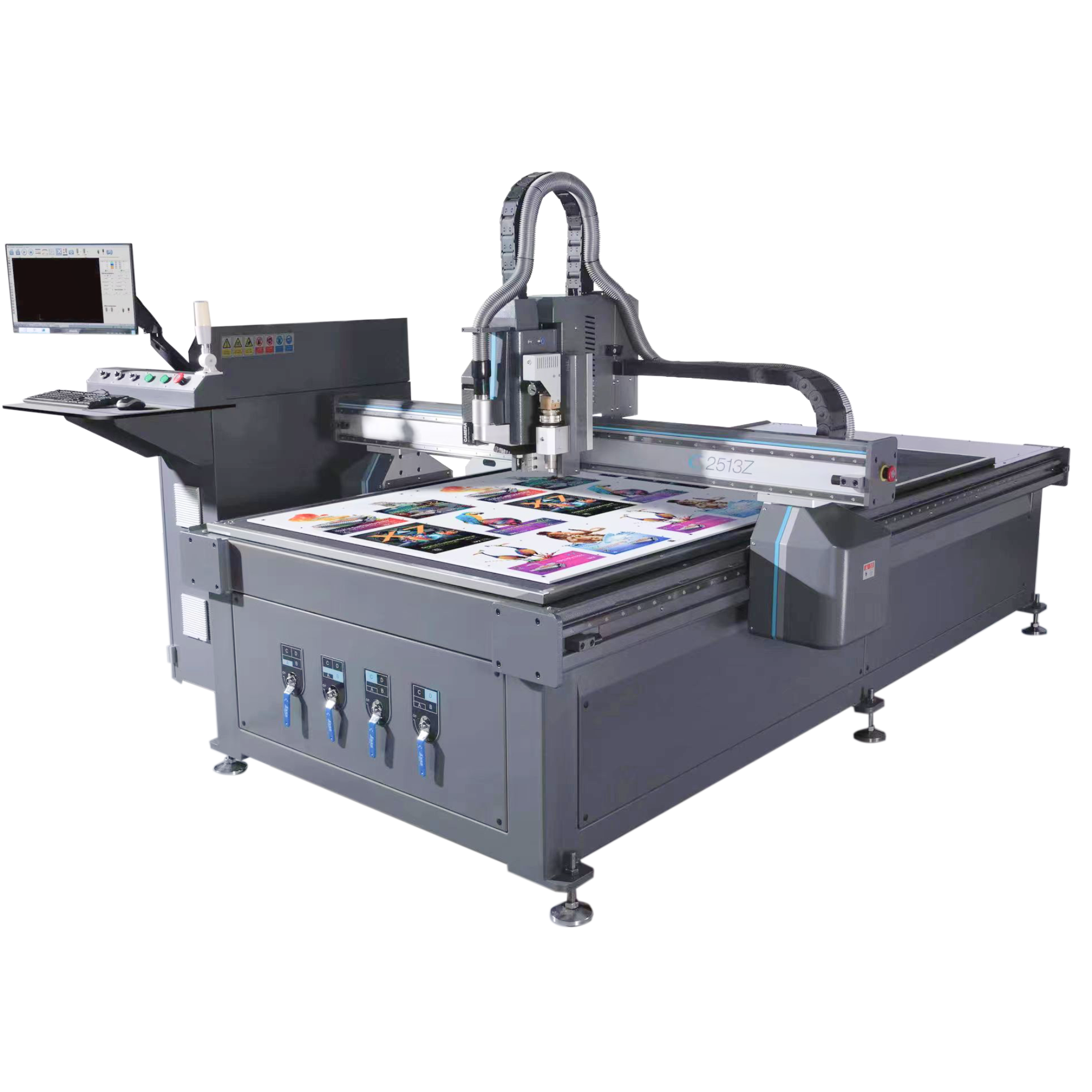

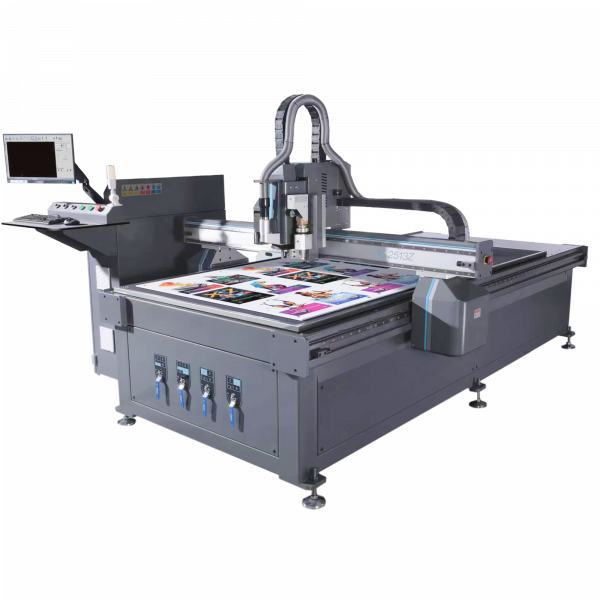

TPS C2513Z Multi-functional CNC router

Between Heavy duty & Light duty

CNC router

& flexible tool

20 days

Delivery*

2 years

Warranty

500+

Installations

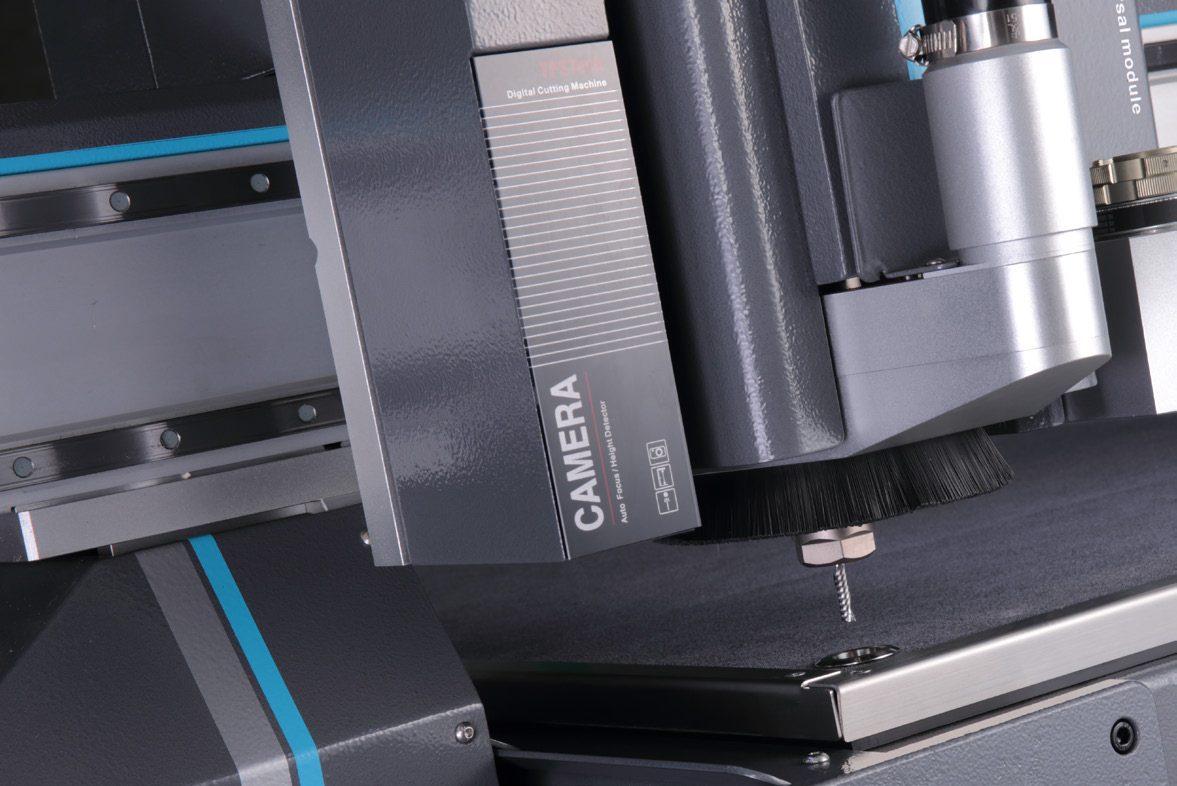

TPS CNC router model C2513Z is the latest developed engraving and cutting intelligent equipment, which integrates carving, cutting and multi-functional vision positioning. The equipment is designed with the structure of industrial steel machine bed and the aluminum gantry. The machine bed is treated by vibration aging technology, the processing surface and the installation holes of which are all processed by the precise gantry milling machine by once. The router is equipped with high-speed water-cooled spindle, ultra-frequency electric oscillating knife, CCD visual positioning system and vacuum cleaning system. With international high performance motion control system and

TPS independent developed and professional CAM software for carving and cutting, the machine has advantages of simple and convenient operating, high speed, high precision and perfect effect of dust collection. It is widely applied in advertising and sign industry, printing and cutting industry and other industries. Its application materials is KT board, PVC board, acrylic sheet, MDF, aluminum, copper, aluminum composite panel,plastic, carbon fiber composite materials,PC sheet,soft film, vinyl, magnetic sticker and so on.

TPS CNC router sizes

(More customized sizes are available)

Small

C2513Z

Width: 1300mm

Length: 2500mm

Medium

C2516Z

Width: 1600mm

Length: 2500mm

Large

C3020Z

Width: 2000mm

Length: 3000mm

Huge

C2525Z

Width: 2500mm

Length: 2500mm

AKI:

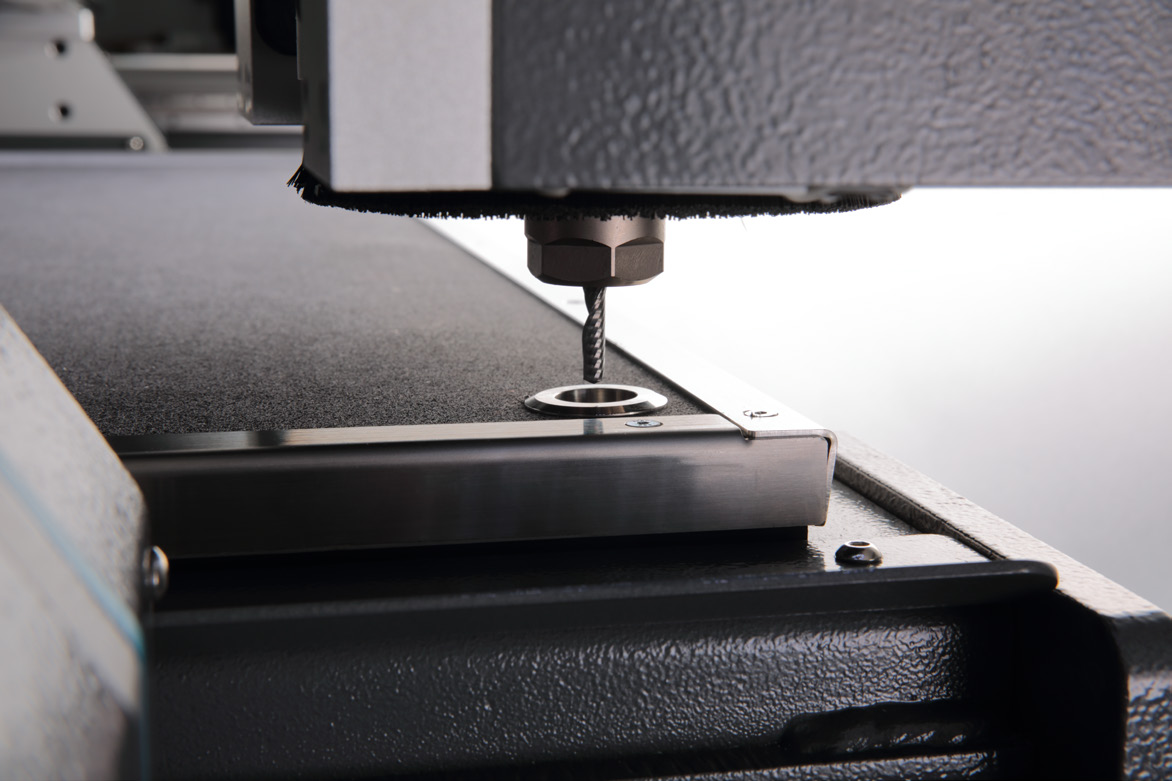

Pressure sensitive automatical knife initialisation tool makes changing knife blades and router bits much safer and faster because operator errors in connection with such changes are eliminated.

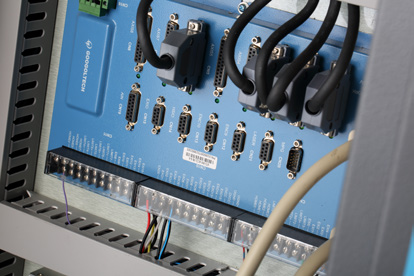

Control system adopts high speed motion control system and TPS independent developed high speed engraving software, with the help of which, there is no need to edit by third-party software before cutting.

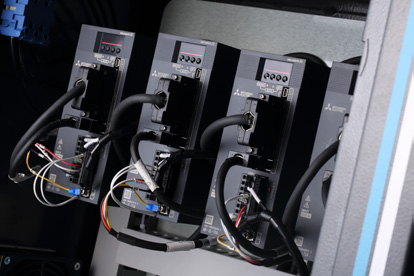

C-2513Z is a machine integrating visual positioning, carving and cutting, which is with new mechanical design, precision processing and strict assembly, completely representing different from the traditional. Moving parts adopts screw, guide rail, grinding grade rack and pinion and ac servo motor of all imported.
